Dye House Automation System

Last Updated on 30/12/2020

Dye House Automation System

Md Mozammel Haque Shapon
Pabna Textile Engineering College
Email: shopon.haque007@gmail.com


Dye House Automation System:
Dye house automation system consists of dyestuff and chemical dispensing, weighing, dissolving and dispensing lines, salt and soda mixing storage and dispensing systems.

Dye House Automation System has four major segments:

  1. Powder dye storage and weighing system [Capacity 25¬80 dye box (TBT& paternoster)]
  2. Powder dye dissolving and distribution system [Capacity 50cycle/dye (TBC)]
  3. Liquid chemical distribution system [Capacity 1500cycles/dye (RD96)]
  4. Powder chemical dissolving & dispensing but ion system [Capacity 350lt/min (SLD)]

Here two system are described below.

Powder Dye Storage and Weighing System, TBT & Paternoster:
Dye itself is the most important element during the dyeing process and its exact weighing is absolutely mandatory. This precision is dependent on two factors: right sort dye and right amount.

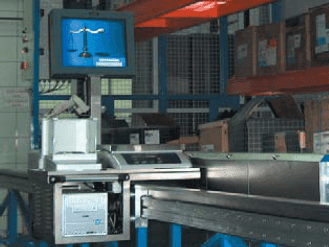

Powder Dye Storage & Weighing System
Fig: Powder dye storage and weighing system

TBT, supported by paternoster always provides the right and reliable solution. With data transferred from the recipe software, it directs you to the right type of dye and corrects amounts to be weighed. Two high capacity-high precision scales connected to the system ensure correct result. This precision is accomplished at a fraction of the cost of a fully automatic system.

The automatic positioning feature of paternoster operates in conjunction with TBT. It rapidly finds and retrieves the dye and directs you towards the dye with its lamps.

Powder Dye Dissolving and Distribution System, TBC:
Weighing dissolving and transportation of chemicals and dyestuff causes many difficulties in dye houses. Processing every batch in equal conditions is very important to differences (deviations) between productions lost. Different categories of dyestuff require able to minimize dissimilar dissolving techniques causing operators several problems. With aid of TBC different category-specific scenarios can be applied to respective sort of dyestuff (reactive disperse etc).

Powder dye dissolving and distribution
Fig: Powder dye dissolving and distribution

Advantages of a Dye House Automation System:
The central network system of a dye house offers the following advantages.

  1. Exact dosing
  2. Simplified operations
  3. Flexibilty and openness
  4. Total integration of systems
  5. Savings in time
